TRU35 Base Radio Kit

Description

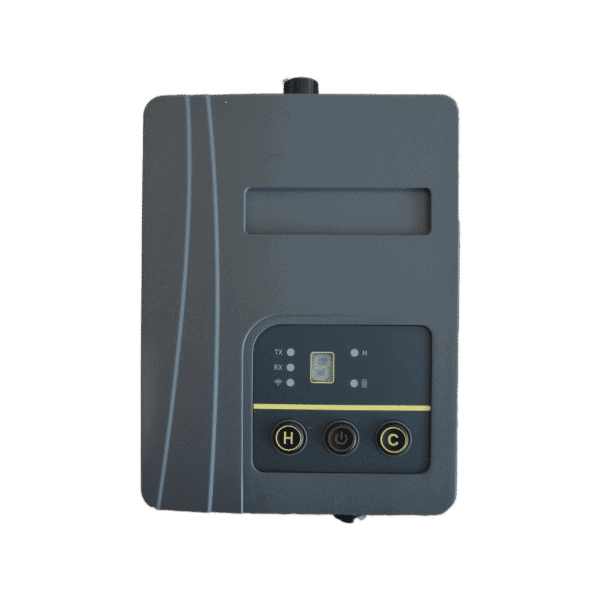

TRU35 is a high speed, high power, wireless data link built to survive the rigors of GNSS/RTK surveying and precise positioning, with the ability to act as either a repeater, rover radio or as a base radio. This radio’s 35W of power maximize range, enabling you to work in difficult urban areas. The TRU35 is equipped with digital tube, LED and keypad, used to indicate the current operating status, as well as for changing the operating channel and power level of the radio modem. For the most rugged and reliable long-range data link, go with the Geomatics industry’s new standard, the TRU35.

PRODUCT DETAILS

● 60MHz Bandwidth Coverage 410-470 MHz bands

Advanced data link design for high performance over entire band.

● Multi-function user interface

It was designed for easy mobile use in demanding field conditions.

 Configurable Transmit Power

Support for 5W,10W,15W,20W,30W,35W power switching.

● Software-Derived Channel Bandwidth

Compatible with both 12.5 and 25 kHz radios.

● High Environmental Capabilities

According to the IP67 standard

● Repeater Function

In the same frequency or different frequency.

PACKAGE INCLUDES

  • 450-470 MHz Radio

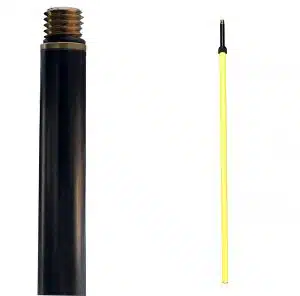

  • 6′ Tripod Extension Pole
  • 4.5 m (15′) Radio Antenna Mount Cable
  • 100 % Fibreglass Tripod
  • Radio Antenna Whip (unity gain)
  • 12V Sealed Lead Acid Battery
  • Hard Case

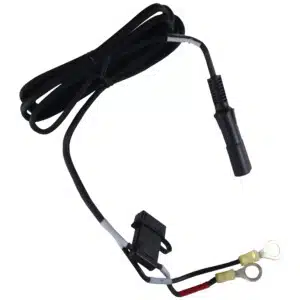

  • Trailer Plug Lead
  • Wall Smart Charger

Description

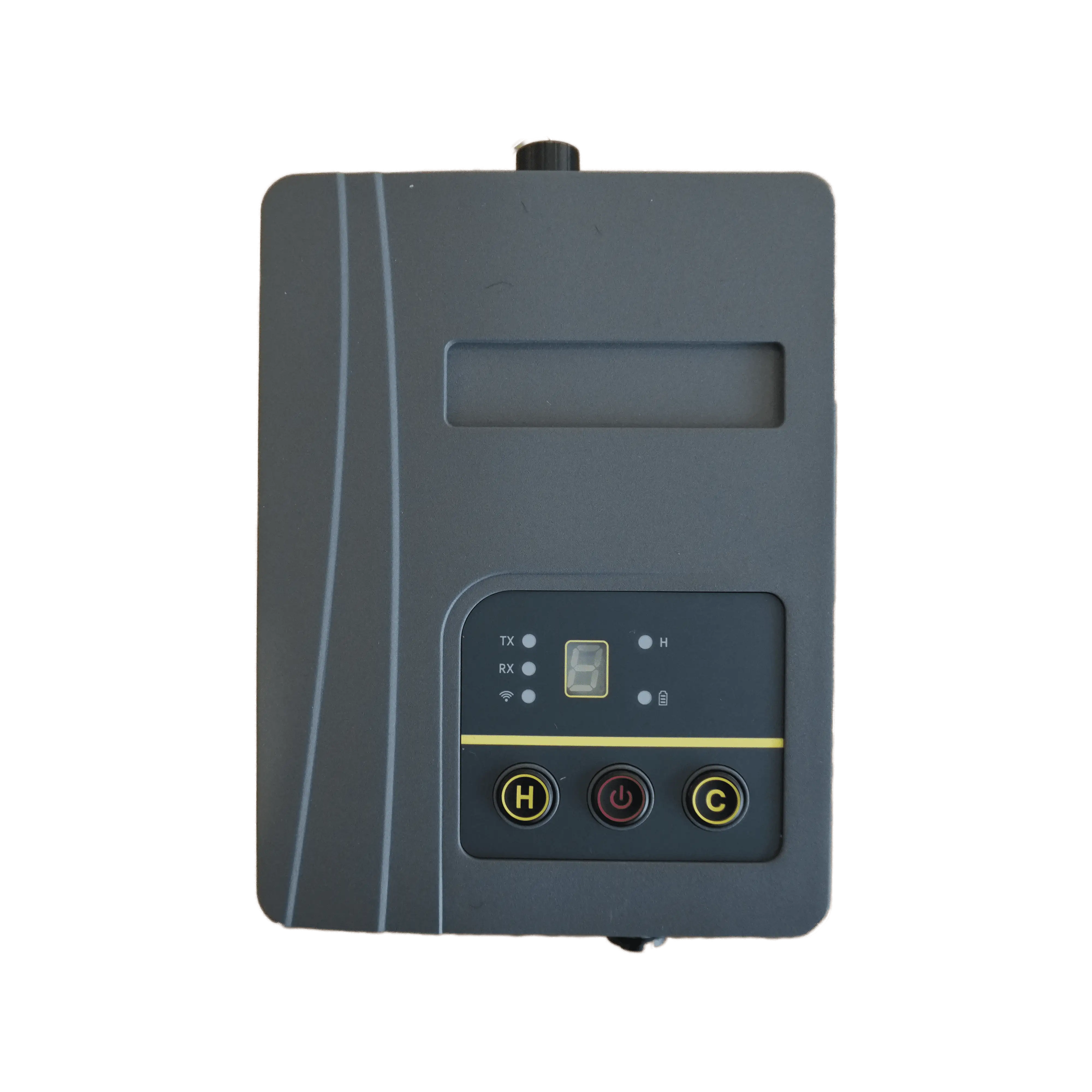

The TRU35 Base Radio

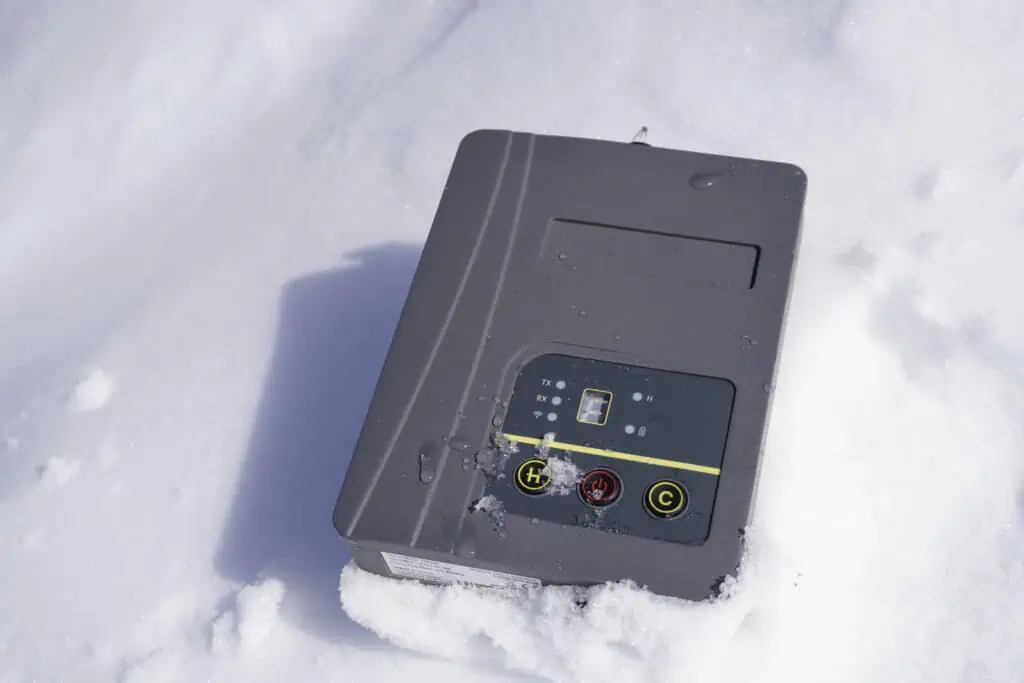

The Unistrong TRU35 radio is the ultimate base radio designed to deliver reliable communications even in the harshest conditions. Boasting an impressive IP67 dust and water proof rating, this radio can withstand anything you can throw at it on site. Unlike other radios the TRU35 features an all-metal enclosure that ensures maximum durability and longevity. Even the build in tripod hook is made of metal.

  • 410 – 470 MHz Range
  • Multi-Function User Interface
  • Configurable Power Options
  • Repearter Functionality

Flexible Options

The TRU35 is designed to meet your needs, with the ability to work either as a repeater or as a base radio. You can always get the range you need. The adjustable power options also allow you to tailor your radio usage.

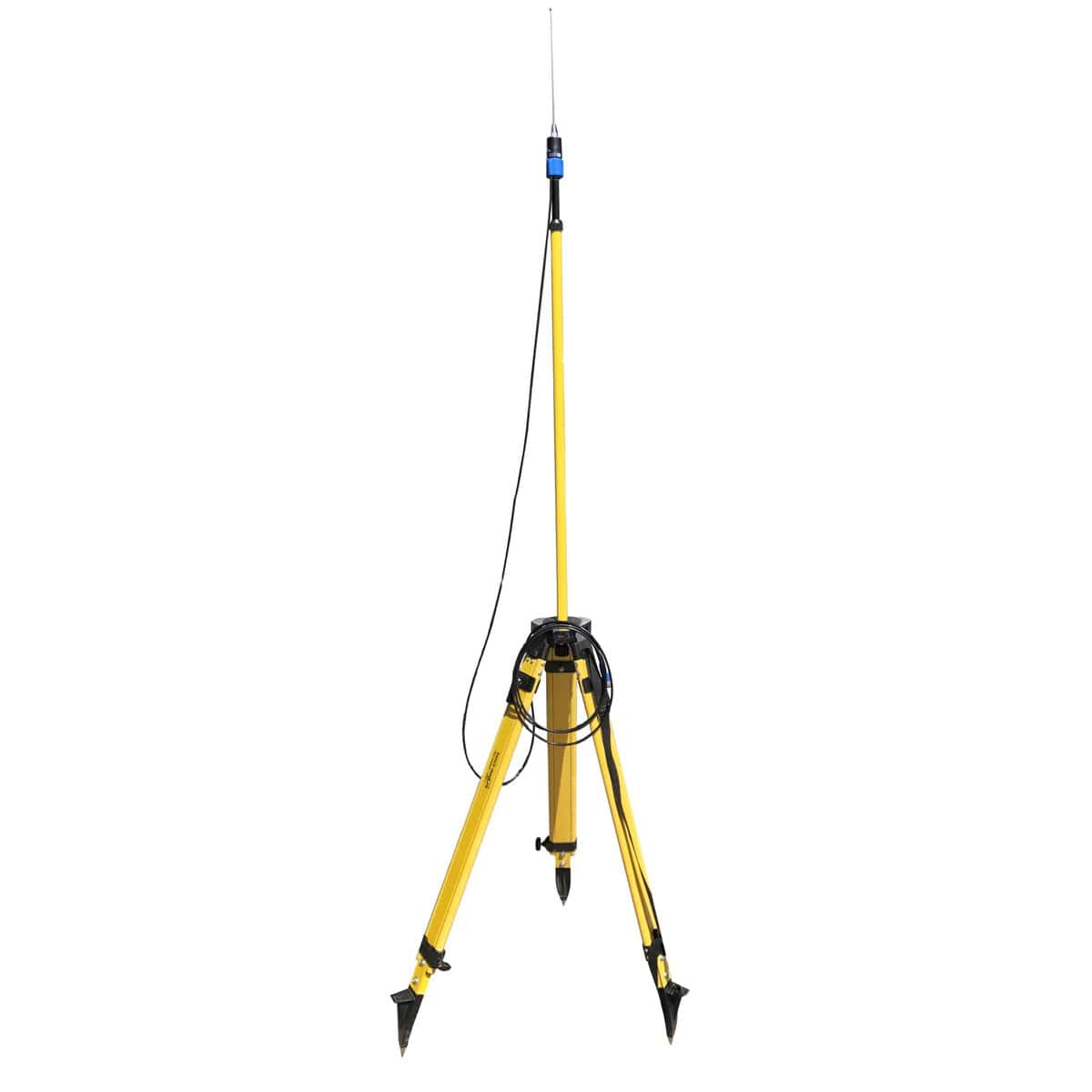

The Base radio package comes with everything you need to operate your radio setup, including; antenna, base radio cable, antenna mount cable, extension pole and tripod.

  • 5 W, 10 W, 15 W, 20 W, 30 W, 35 W
  • 12.5 and 15 kHz Options
  • Programable Channels

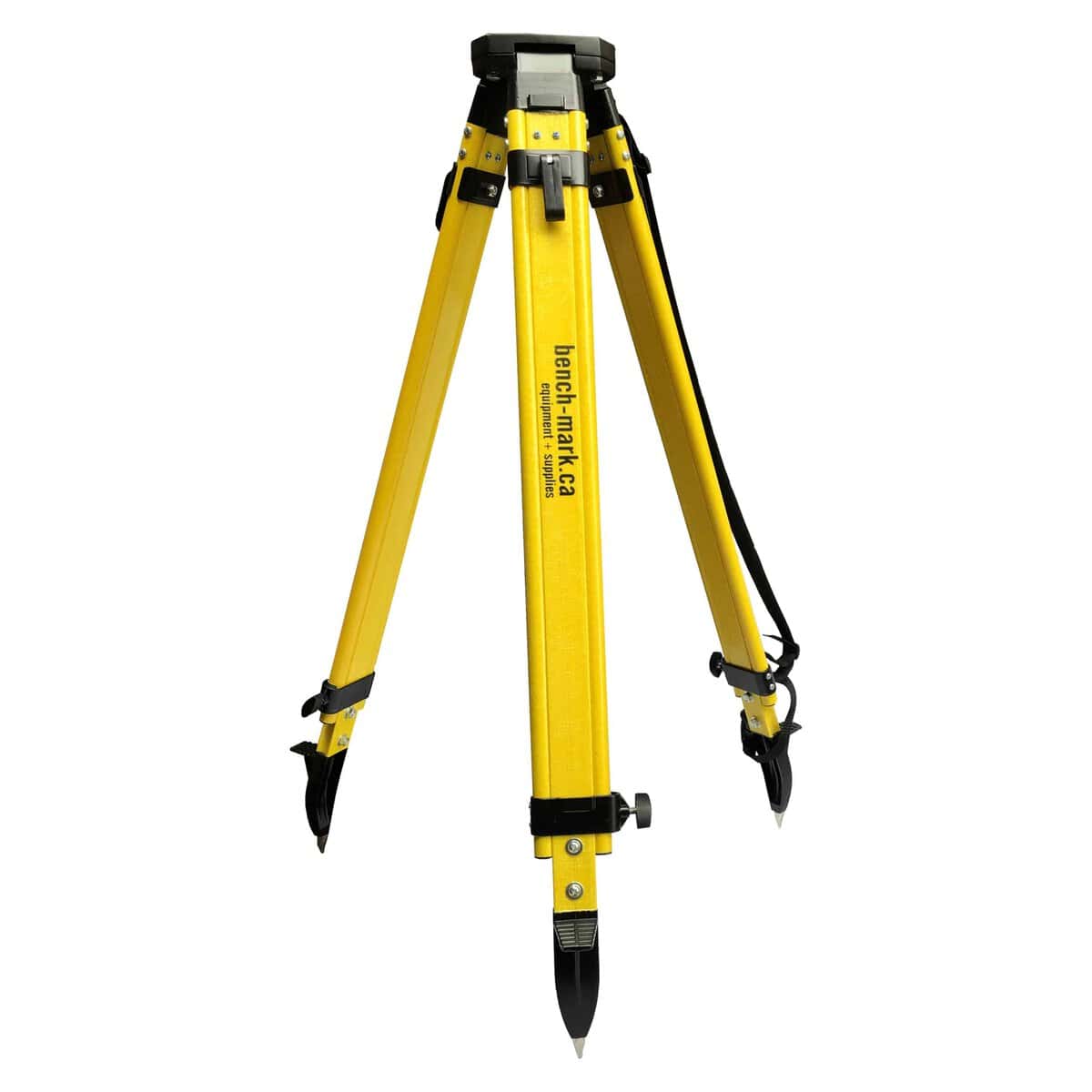

Fibreglass Tripod

Lightweight and Rugged

Carrying around heavy tripods can become quite tiring over the course of a day. The GeoMeasure fibreglass tripod is designed to as lightweight and durable as possible. This is the tripod that professionals who need a reliable and easy to carry solution for their equipment turn to. The legs are made entirely of fibreglass, meaning they are resistant to wind, water and freeze thaw cycles.

The tripod features quick release clamps that make fine tuning the adjustment of the tripod quick and easy. To tighten, simply push the handle down, and the legs will lock in place. The bottom of each leg also features a screw clamp that ensures once the leg position is locked in place, that they do not move. With over 2 ft of adjustment in each leg, you can always be sure that you can get your tripod adjusted to the height you need.

To make it easy to place your tripod, each leg has a large step that makes it easy to drive the leg into the ground. The 1/2″ point at the base of each foot ensures that in even the hardest of ground, you can drive the leg into the ground ensuring that it can’t go anywhere.

The triangular flat head ensures a wide stable platform for yor instrument, and the universal 5/8″ thread means that is compatible with nearly all survey equipment. Whether you are looking to secure a GNSS receiver, theodolite, total station, robot, tribrach, or whatever piece of equipment you use, you will be able to.

To make carrying the tripod easier, the legs can be secured with a pass around strap that locks them in place. This prevents the tripod from opening up while you are walking around site. The tripod has a easy carry strap that slips over your shoulder and ensures that the total station is easy to carry while carrying other equipment.

Overall, the GeoMeasure Fibreglass tripod is an excellent solution for the professional looking for a reliable, lightweight and durable tripod that can withstand the elements and whatever else you throw its way.

man with tripod
