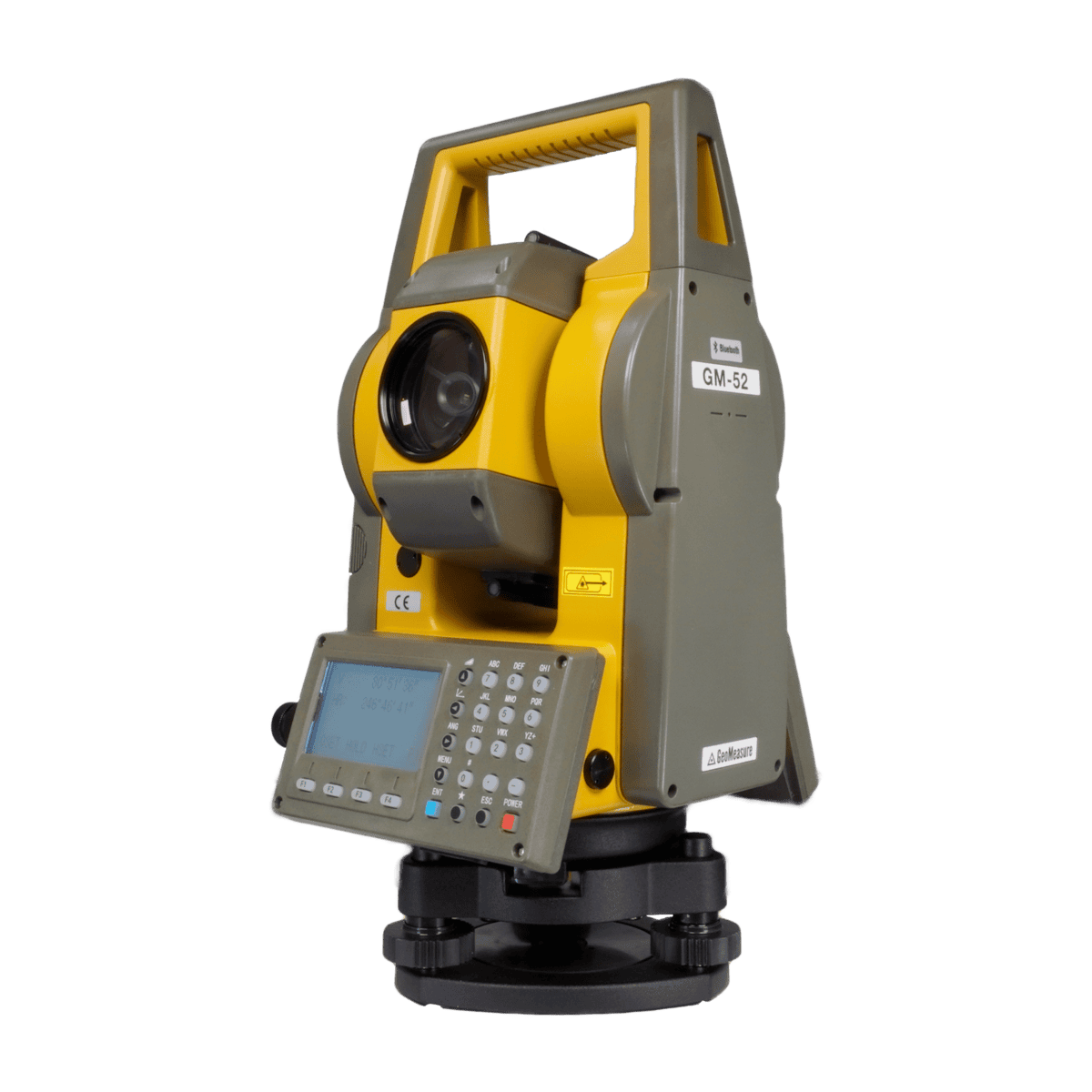

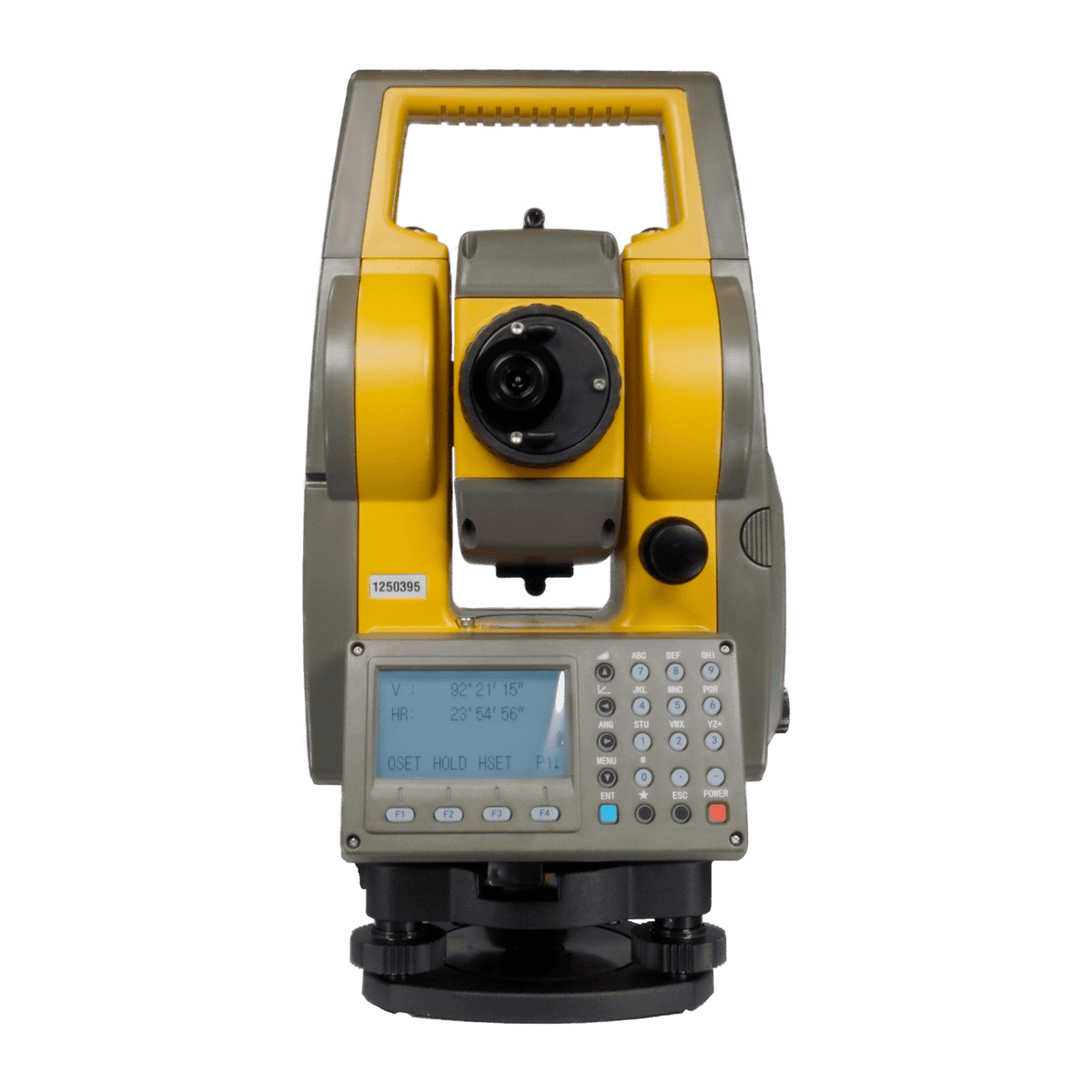

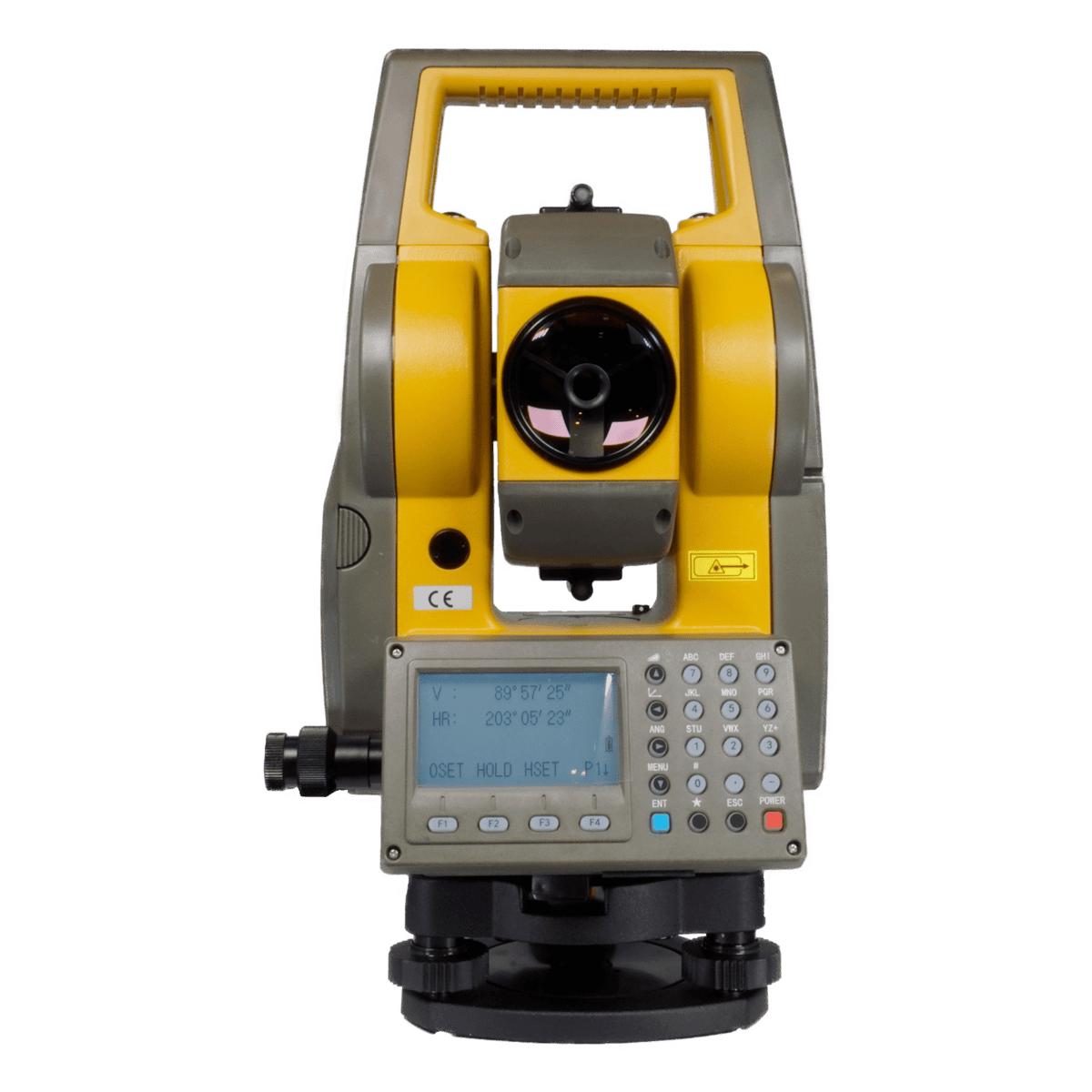

GeoMeasure GM52 Reflectorless Manual Total Station

The GeoMeasure GM52 manual total station is designed for dependable angle and distance measurement in construction layout, boundary surveys, and site control applications. Built for precision and reliability, this instrument delivers consistent performance in demanding field environments.
Equipped with a fast and accurate Electronic Distance Measurement (EDM) system, the GM52 measures up to 3,000 m with a prism and up to 500 m in reflectorless mode. Advanced angular accuracy ensures precise staking and layout, while integrated Bluetooth® connectivity enables efficient data transfer without cable restrictions.
Part of the GM-50 Series, this manual total station features a compact, durable design with increased internal storage and a rugged, waterproof housing engineered for daily jobsite use. Thoroughly tested for field durability, it provides the stable performance required for professional surveying and construction workflows.
For crews seeking a cost-effective, high-accuracy manual total station with proven reflectorless capability, the GeoMeasure GM52 offers practical performance and long-term reliability.

Additional product info

Detailed quote form

Request A Free Quote – GM52 Total Station

"*" indicates required fields

Total Station Options

Select Total Station

Data Collection Options

Select Data Collection

Desktop Software

Select Desktop Software

Accessories

Select Accessories
Name*
Call In?
Receive text messages from us?

By submitting this form, you hereby agree to receive communications from Bench Mark

By providing a telephone number and submitting this form you are consenting to be contacted by SMS text message. Message & data rates may apply. You can reply STOP to opt-out of further messaging, and get more help by sending HELP. Check our Privacy Policy for more information.

Product details

  • 500m Reflectorless
  • User Friendly Onboard Software
  • 2″ Angular Accuracy
  • Dual Axis Compensator
  • 1.5mm + 2ppm Accuracy with Reflector
  • 2mm + 2ppm Accuracy Reflectorless
  • Wireless Bluetooth Communication
  • Laser Plummet
  • 30X Magnification Telescope

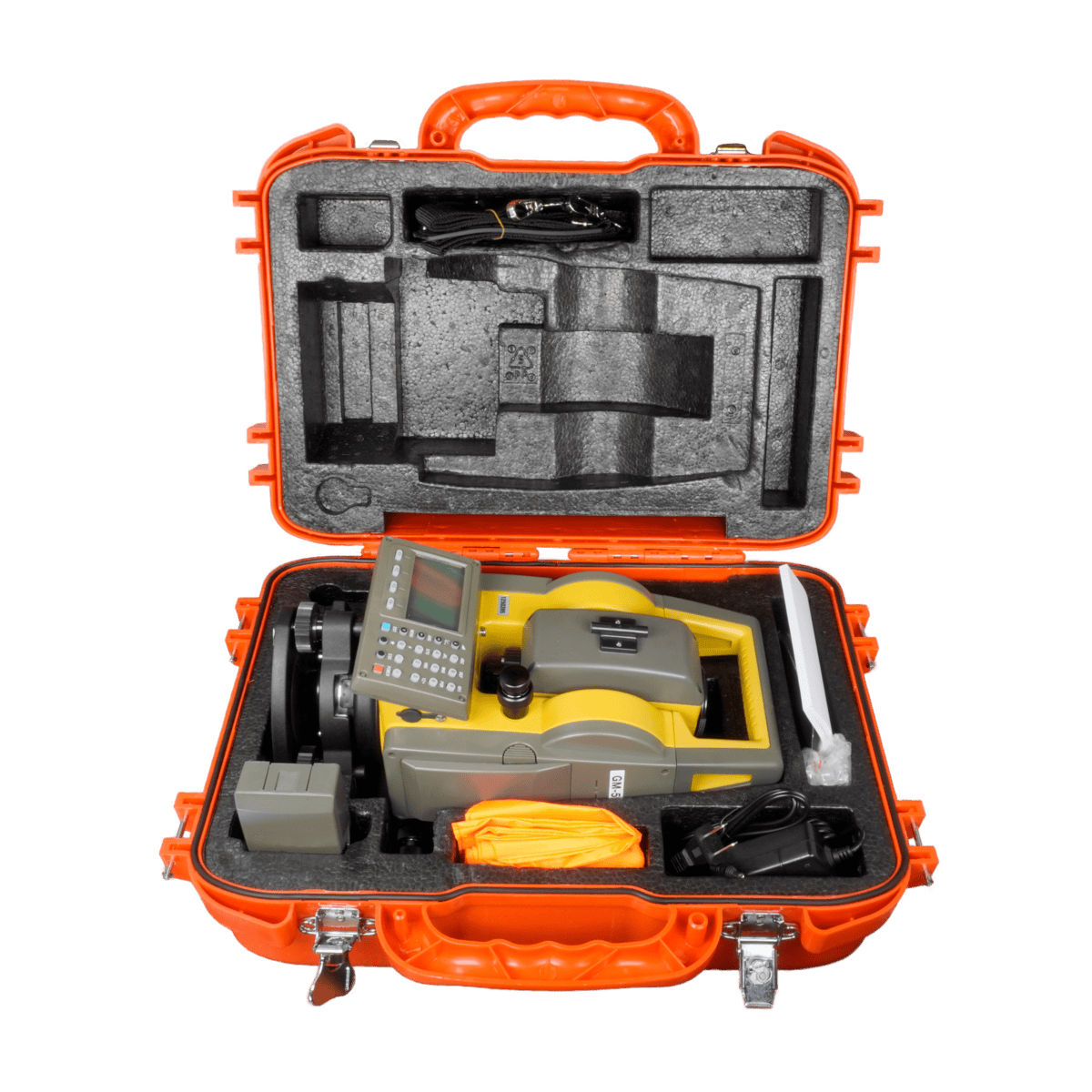

Package includes

  • Reflectorless 2″ Total Station
  • Li-Ion Battery
  • Charger
  • Manual

Description

Precision with the GM52 Manual total station

Built for Accurate Construction Surveying

The GM52 manual total station delivers reliable reflectorless measurement and consistent precision for construction layout and site control in demanding field conditions.

Swift and Precise Measurements: As a construction surveyor, time and precision are of the essence. The advanced Electronic Distance Measurement (EDM) system ensures swift and accurate measurements, allowing you to efficiently gather crucial data for your construction projects.

Seamless Connectivity with Bluetooth®: Say goodbye to tangled cables. The optional Bluetooth® feature facilitates seamless communication between the Reflectorless Total Stations and your data controller. This wireless capability enhances mobility on construction sites and streamlines data transfer for a more efficient workflow.

GM52 Manual Total Station

Precision in Angles: In the world of construction, precision in angles is non-negotiable. These total stations boast advanced angle accuracy, providing you with the confidence that your measurements are precise and reliable, essential for the success of your construction endeavors.

Extended Battery Life for Uninterrupted Work: Construction sites demand endurance. With a battery life of up to 14 hours, these total stations ensure uninterrupted operation throughout the day, allowing you to tackle extensive construction surveying tasks without the need for frequent recharging.

Rugged and Waterproof Design: Construction environments are notoriously challenging. The rugged and waterproof design, validated with an IP66 rating, ensures that these instruments can withstand the rigors of construction sites, providing durability and reliability in diverse weather conditions.

Extended Reach with Reflectorless Measurements: Construction sites often present challenges in reflective surfaces. The Reflectorless Total Stations overcome this hurdle with a remarkable 500 m long-range reflectorless measurement capability. Expand your reach and capture accurate measurements even in situations where reflective surfaces are scarce.

Ample Storage Capacity: Construction projects generate vast amounts of data. With an internal memory capable of storing up to 50,000 points, these total stations offer ample capacity to manage and organize your construction survey data efficiently.

Class-Leading EDM Unit for Construction Accuracy: Equipped with a class-leading EDM unit, the GM-50 Series ensures precise measurements of up to 4,000 m with an outstanding accuracy of 1.5 mm + 2 ppm to standard prisms. This level of accuracy is indispensable for construction layout and verification tasks.

Reflectorless Mode for Construction Flexibility: In reflectorless mode, the GM-50 Series excels with measurements up to 500 m and an impressive accuracy of 2 mm + 2 ppm. This feature is a game-changer for construction surveyors, allowing you to capture data efficiently in areas where reflective surfaces are limited.

Efficient Measurements for Construction Layout: Capture measurements rapidly with a bright red laser dot featuring a 13 mm beam width at 30 m. This pinpoint accuracy is essential for construction layout tasks, ensuring that you can precisely position critical elements of your construction project.

Bluetooth® Connectivity for Construction Workflow: Integrated Bluetooth® capability with an internal antenna enhances connectivity, enabling cable-free delivery of measurements to your data controller. This feature contributes to a more streamlined and efficient workflow on construction sites.

FAQs

The GeoMeasure GM52 is a manual reflectorless total station designed for topographic surveys, construction layout, as-built surveys, and general site measurement. It combines 2-second angular accuracy with a dual-axis compensator and reflectorless distance measurement, making it suitable for fieldwork where surveyors need to measure angles, distances, and coordinates accurately. Its onboard software also supports common surveying tasks without requiring an external data collector for every operation.

The GM52 has an angular accuracy of 2 arcseconds, which determines how precisely the instrument measures horizontal and vertical angles. This level of accuracy is suitable for many construction layout, topographic, and general surveying applications. The total accuracy of a survey also depends on distance measurement performance, instrument setup, target positioning, and field conditions.

The GM52 provides distance measurement accuracy of 1.5 mm + 2 ppm when measuring with a prism and 2 mm + 2 ppm in reflectorless mode. These specifications describe the expected measurement error as distance increases. For example, the parts-per-million component accounts for additional error over longer measurement distances.

The GM52 supports reflectorless measurements at distances of up to 500 m (approximately 1,640 ft). This allows surveyors to measure suitable surfaces without placing a prism at every target, which can be useful when measuring building facades, structures, or inaccessible points. Actual range and accuracy depend on the target’s surface, color, angle, and environmental conditions.

The GM52 can measure distances of up to 3,000 m (9,843 ft) with a single prism and up to 6,000 m (approximately 3.7 miles) when using three prisms. It also offers reflectorless measurements at distances of up to 500 m (1,640 ft), allowing surveyors to measure suitable surfaces without placing a prism at every target. Actual measuring ranges depend on the prism configuration, visibility, atmospheric conditions, and measurement settings.

Yes. The GM52 includes dedicated onboard software for measuring and storing survey points. Its onboard functionality supports common field tasks, while an external data collector can be used for more advanced data collection and surveying workflows. This gives surveyors flexibility to work directly from the instrument or use a separate field controller.

Yes. The GM52 uses Bluetooth to communicate with compatible external data collectors. It supports Topcon MAGNET, Carlson SurvCE, and SurvPC. For field data collection, you can also choose a BMT8 running FieldGenius or a Mesa 3 with Carlson software. Check software version and instrument driver compatibility to ensure the controller works with your GM52.

The GM52 has 32 GB of internal storage and can store approximately 50,000 survey points. It also supports removable storage options, including SD cards and USB, for transferring and managing field data. This capacity helps accommodate larger surveying jobs without requiring frequent data transfers during fieldwork.

The GM52 uses a removable 3 Ah, 7.4 V lithium-ion battery and provides approximately 14 hours of operating time under the manufacturer’s specified conditions. Actual runtime can vary with operating temperature, display use, measurement activity, and communication settings. The removable battery design also makes it practical to carry a spare for longer field sessions.

Yes. The GM52 has an IP66 rating for protection against dust and powerful water jets. Its specified operating temperature range is -20°C to +60°C (-4°F to +140°F), making it suitable for a range of outdoor surveying and construction conditions in the United States. The instrument should still be stored and operated according to the manufacturer’s environmental guidelines.

The standard package includes one GeoMeasure GM52 reflectorless total station, a lithium-ion battery, a battery charger, and a user manual. Additional equipment, such as a BMT8 data collector with FieldGenius, a Mesa 3 with Carlson software, MSCAD or Star*Net desktop software, a fibreglass tripod, and a pole-and-prism set, is available separately. These accessories and software packages are not included in the standard package.
