Hemisphere GNSS has provided industry leading positioning technology for over twenty years since their inception in 2002. Specializing in positioning, they provide positioning receivers and antennas to a variety of industries, including; Marine, Agriculture, Survey, UAV, Autonomous vehicles and more. Having started in agriculture with the well-known Outback brand, they have since branched out providing the best value positioning instruments on the market.
Hemisphere has built a reputation on providing high-performance, high-precision and reliable GNSS positioning solutons for a fair and just price. They design their products to be easy to integrate, and to take care of the latest available signals and satellite constellations. With one of the best RTK and positioning engines on the market, you can take these receivers into locations you never would have dreamed with other technology.
Hemisphere is headquartered in Scottsdale Arizona, and pride themselves on being an American company. With headquarters in Arizona and an office in Kentucky, there is no need to send your equipment overseas for repair, or to deal with tech support that does not speak your language and is not in your time zone. Everything is done in North America, and works their support is available when you are actually working.
The Hemisphere S631

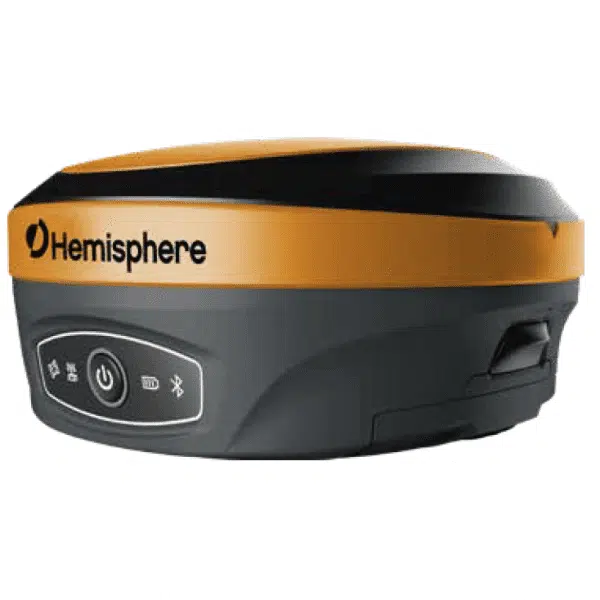

The Hemisphere S631 is the latest RTK receiver from Hemisphere. Having taken lessons from the previous generation S321 and S320, the S631 is their best offering yet. With the latest RTK engine and RTK board on offer from Hemisphere, the S631 can out perform anything on the market in difficult environments.
The S631 can receive corrections from all of the major constellations, with the ability to receive all available L5 signals. What this means for you in the field is better performance under trees and near buildings.
GLONASS: G1/G2/G3, P1/P2
SBAS and Atlas
Multi-Path Mitigation - Athena RTK
The Phantom 40 GNSS board by Hemisphere boasts the best RTK engine on the market for mitigating multi-path noise. Multi-path noise is created when signals are reflected off of a surface before reaching the receiver. When this happens, the signal timing, which is what the reciever relies upon to calculate a position, is affected. In order to calculate an accurate and repeatable position, the RTK engine must be able to eliminate these bad signals.
The S631 uses the Athena RTK engine to remove these bad signals from the solution. The S631 can also use Hemisphere’s SureFix technology. With SureFix, two independant and different RTK engines calculate two independant solutions. Only once the two solutions are in agreement, will the fixed solution be reported.
The Hemisphere S631 utilizes the Phantom 40 RTK chip and the Athena RTK engine to have the best in class under canopy performance. With the ability to track every available L5 signal, and fix on any constellation, the S631 can out perform the biggest names in the industry. Check below to see how the S631 stacks up against the older generation S321+ and the latest RTK receivers from Trimble, Leica, and Sokkia.
Advanced IMU Tilt Sensor
The S631 boasts an internal Inertial Motion Sensor (IMU). What the IMU allows the receiver to do is record accurate and reliable positions, even when the pole is tilted. This allows you to speed up your work by up to 50% when laying out.
The IMU integrates motion and RTK data into the solution. What this means is that as you move around, the tilt sensor gains a better idea of where it is, improving results. Unlike previous generation receivers, there is no difficult and cumbersome calibration routine. All you need to do is rock the receiver back and forth for 30 seconds and you are ready to start surveying.
Tilt allows you to drastically speed up your work pace, as you do not ever have to stop to level your pole. You can place your pole on the ground and take your shot, without ever looking at the bubble.
Extended Range, Battery Life, and Rugged Durability
The S631 has an internal 1 Watt Satel radio, that is capable of broadcasting many of the most common survey protocols including; TrimTalk, Pacific Crest, TrimMark and Satel. The internal radio is capable broadcasting out to a range of 7 miles, and can regularly achieve 3-4 miles with no line of site in a city environment. And if that range is not sufficent, you can always use StormCaster to broadcast your corrections over a cellular network. This eliminates the downsides of radio, while allowing for an infinite amount of range.
In order to protect the Phantom 40 board, and the long-range internal Satel radio, the S631 boasts an IP67 rating. This means that you can use the S631 come rain, sluch, dust and sun. It will be more than sufficent to stand up to the conditions you will see on site. The magnesium shell also protects against drops and accidents on site. Rated for a two meter pole drop onto concrete, the S631 can withstand anythig you throw at it.
The internal batteries in the S631 are designed to be as efficient as possible, with up to 12 hours of continuous operation possible. The internal batteries are also removeable, in order to make at easy as possible to keep working. There is no need to wait for the unit to charge once you run out of power. You can hot swap the internal batteries, so that you do not need to stop working. With the smart indicator on battery health, the S631 is the perfect solution for those who are working a long day in the field.
Juniper Mesa 3
Juniper’s Mesa 3 is a great addition to any surveyor’s kit. Running Windows 10, it’s just like your desktop in the office. In fact, the Juniper Mesa 3 Rugged Tablet is incredibly functional in the field- meaning you won’t even need to use your office desktop.
The Juniper Mesa 3 Rugged Tablet is built ultra-tough for unwavering reliability in the most rugged conditions out there. It’s the got the highest protection on the Windows tablet market against water and dust, and because of its IP68 rating, it can exceed MIL-STD-810G for humidity, and dust, vibration, altitude, shock, and temperature. Essentially, the Mesa is a beast – it can follow you into even the roughest conditions.
On top of that, the Juniper Mesa 3 battery has an outstanding life cycle; you shouldn’t ever need to replace it. It’s also designed to perform in cold temperatures, meaning you don’t have to worry about tough environments.
MicroSurvey is behind many of the best known survey software packages on the market. Their software is desined to collect, process and analyze your survey data, as well as to design and layout development projects. They have designed their software to meet the needs of a variety of industries, including geomatics, mining, forensics, construction and more. Their tools are designed to have everything an engineer needs, but to be easy enough for anybody to use. Whether it is FieldGenius for field work, MSCAD for drafting, or StarNet for quality control, MicroSurvey has a software package to meet your needs.
MicroSurvey is based out of Kelowna, and their support is based their too. What this means for you, is that support is based in your time zone. Their is no trying to contact someone on the other side of the world, they are available when you are working. With our Bench-Mark created how to videos and cheat sheets you can quickly and easily learn the software.
FieldGenius - The Ultimate Surveying Solution
Unlike everyone else in the industry, MicroSurvey does not sell hardware. They are exclusively focused on providing a software solution. This means they are not pushing their own hardware, they are the last of the open software solutions. Whatever your equipment, you can connect with FieldGenius.
FieldGenius has several different software modules, but unlike a lot of other software companies, FieldGenius provides both total station and GNSS drivers in the base package. With the premium upgrade, you get access to the robotics and roading modules.
We recommend using the S631 with FieldGenius for the best experience.
Easy to Learn
We have designed our entire support experience on providing you all of the information you need. We have designed it to be as easy as possible to learn the software, with training, cheat sheets, and how to videos.
We offer training to meet your needs. In the sessions we cover how to setup recievers, create a new project, and all the basics of how to run the software. We run the session over Zoom, often with 1-2 people making it easy to ask specific questions to meet your workflow needs.
There is also an extensive cheat sheet and video library with workflows and guides on setting up equipment to staking a point. With over 200 videos and 50 cheat sheets, you can always find what you are looking for.
Cam Christianson –
The S631 really feels like an upgrade over the last generation. It feels better built, and the in-foliage and tilt performance is really convenient.
Reid Ostenberg –
The radio range of the S631 has been blowng me away. I haven’t even had to use my external radio. When paired with FieldGeniu, I get an easy-to-use solution that has all of the tools I need.
Allan Andres –
The tilt feature is wonderful, and the S631 works so well under canopy! I was a bit worried about moving to FieldGenius, but it is easy to use once I had it figured out.
Sid Sandback –
We love the tilt capacity on the S631, and we cannot say enough about the Bench-Mark support. We also love the Graphical Layout in FieldGenius, it’s so easy to use.
Tom Mehdi –
The S631 has been great, with tilt we are a lot faster, and the in-canopy performance is making a big difference. Once I got used to FieldGenius, i found it to be way faster.
Shamus McGee –
We love the fact that the S631 has a 10 km base-to-rover range, and that they will fix any constellation. FieldGenius has to been the easiest and most user-friendly surveying software we have ever used.
Wes Bertoldi –
The quick fixes and accuracy of the S631 in tree canopy has been impressive. Rene and David made the transition to FieldGenius easy, and were very responsive to my questions.
David Harris –
What I really like about the S631 is that I can get a fix where no other GPS unit can go. With FieldGenius, I keep finding new features that are useful for everyday surveying.
Rudi van der Merwe –
The S631 gives us consistent and accurate results in mountainous and foiliage-covered terrain. We found that FieldGenius was easy to learn and we keep discovering more powerful features.
Connor Traves –
The RTK-fixed coverage with the S631 has been vastly improved over the older S321. FieldGenius has freed up our drafters, and made construction layout a breeze.
Dustin Hicke –
The field crews appreciate how light it is compared to the other models. In addition, the tilt sensor is a great featureto help speed up our fieldwork.
Greg Skelhorn –
The S631 is proving itself to be reliable and fast in all conditions. We have seen a definite performance boost with the addition of the S631.
